Pipes, when the requirement arises, the first name that strikes is Jindal Pipe, Hisar.

We are not only in the field of Pipes for water supply, but Jindal Pipes, Hisar is also a well-known name in the field of Structural Pipes.

Jindal Pipe, Hisar's structural pipes can be used in different types of uses due to their strength & dependability, along with the faith bestowed, having consistent quality for the past number of years in manufacturing the best steel tubes for structural purposes.

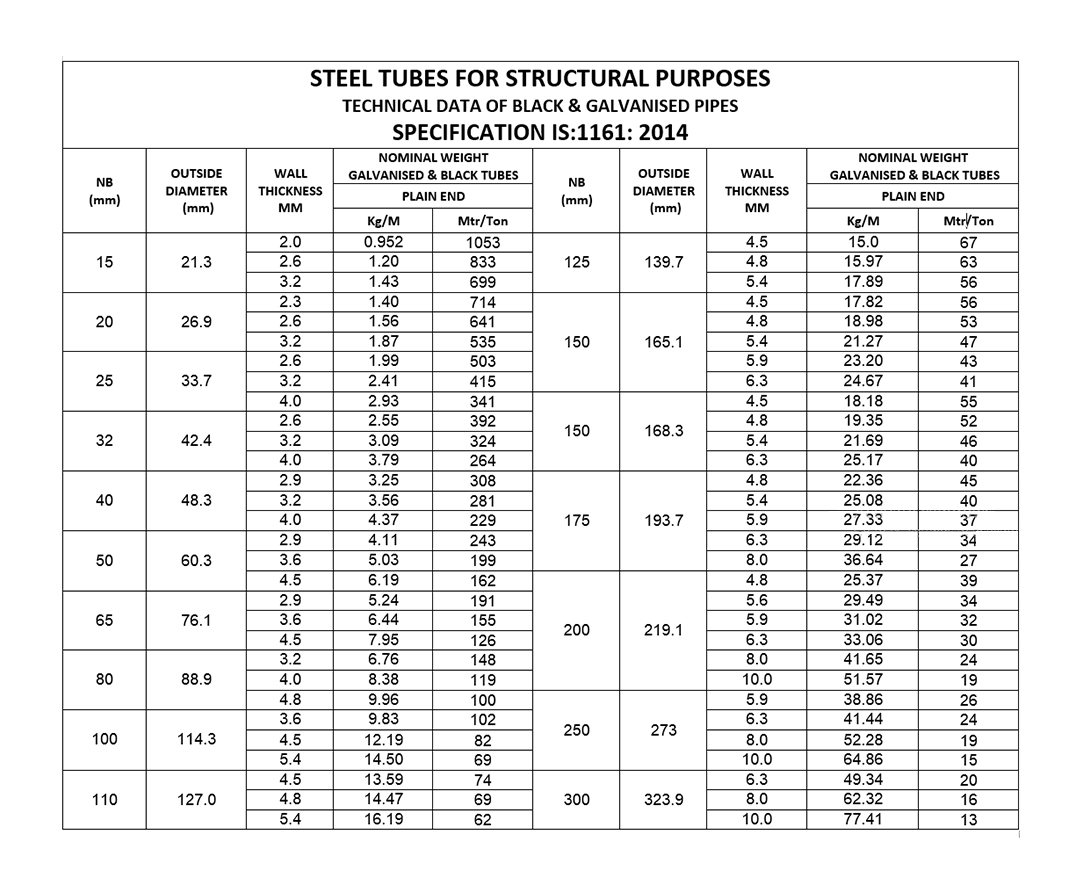

Jindal Pipes, Hisar, Structural Pipes come in sizes from 15mm NB to 300mm NB, both Black & galvanised. Galvanised Structural pipes have a very aesthetic look and are used as handrails, not only in Parks & recreation areas but also in industries.

In today's scenario where ready to move office's & other temporary and permanent affordable structures are required, Jindal Pipes, Hisar, comes to their rescue with the customised steel tubes for structural purposes, where not only speed but structural pipes with high strength help. Jindal Pipes, Hisar, uses have gone another step forward where, Structural Pipes are used in multiple locations, Airports, Railways, Road Transport use high strength YST 310 & YST 355 grades for their roofs, as being easily weldable & fabricated to desired shapes.

In Automobile sector, Jindal Pipes, Hisar's, Structural Pipes are used for providing a sturdy frame for different types of vehicles for transportation. Structural Pipes or steel tubes for structural purposes of Jindal Pipe Hisar brand provide sound support system for Solar Panels & hold them firmly, be it on rooftops or in open area or in fields for Solar Power units, for green uninterrupted power supply even during high winds & hailstorms.

Tolerances in Dimensional Properties

Outside Diameter Upto & Including 48.3mm = +0.4mm, -0.8 mm
Over 48.3 mm = ±1%
Thickness ± 10% (For All Sizes)
Weight Single Tubes: ± 10 % 10 Ton lots : ± 7.5 %


Physical Properties

Grade Y.S.(Min) MPa T.S.(Min) MPa % Elongation
YST - 210 210 330 20
YST - 240 240 410 17
YST - 310 310 450 14
YST - 355 355 490 10

IS:10748 Hot Rolled Steel Strip For Welded Tubes & Pipes

Chemical Properties Physical Properties
Grade Constituent Percent, Maximum TS (MPa) Min. YS (MPa) Min. % Elongation
C% Mn% S% P% Min. at Gauge Length 5.65Sqrt
1 0.10 0.50 0.040 0.040 290 170 30
2 0.12 0.60 0.040 0.040 330 210 28
3 0.16 1.20 0.040 0.040 410 240 25
4 0.20 1.30 0.040 0.040 430 275 20
5 0.25 1.30 0.040 0.040 490 310 15
6 0.25 1.50 0.040 0.040 490 355 15
